Shrink Wrapping Machineries

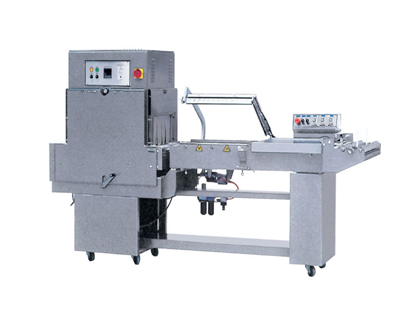

SEALING & SHRINK PACKAGING MACHINE

Model  :CHL-4050BN

Specification:

• Power Supply: 3φ, 220V/380V
• Watts: 11 KW
• Sealing Size: 500(L) x 400(W) x 200(H) mm
• Tunnel Size: 800(L) x 400(W) x 200(H) mm
• Packaging Height: 5~200 mm
• Conveyor Height: 800 mm
• Machine Size: 2600(L) x 760(W) x 1580(H) mm

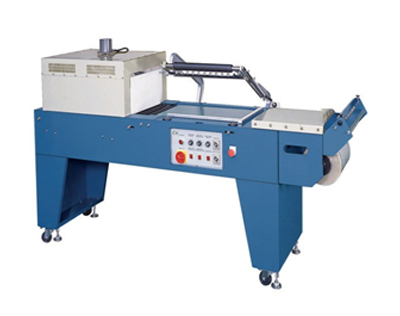

L-SEALER & SHRINK PACKAGING MACHINE

Model :CHL-4050DN

Specification

• Power Supply: 1φ, 220V/240V
• Watts: 7.8 KW
• Sealing Size: 500(L) x 400(W) mm
• Tunnel Size: 700(L) x 450 x 200 mm
• Packaging Height: 5~220 mm
• Conveyor Height: 800 mm
• Machine Size: 2150(L) x 820(W) x 1300(H) mm

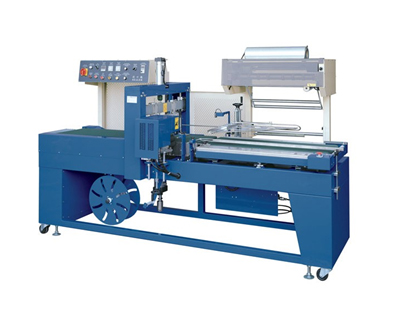

AUTOMATIC SIDE-SEALED SEALER

Model No :CHE-500AL

Specification

• Power Supply: 1φ, 220V/240V
• Power Consumer: 2.1 KW
• Sealing Size: L=∞, W=500
• Conveyor Speed: 0~20 M/min
• Packaging Height: 10~100 mm
• Air Compressor: 6 KG/cm²
• Machine Size: 2000(L) x 900(W) x 1500(H) mm

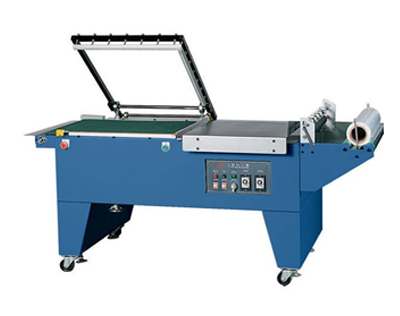

SEMI-AUTO L-SEALER

Model  : CHL-6060B

Specification

• Power Supply: 1φ, 220V/240V
• Watts: 1.5 KW
• Sealing Size: 600(L) x 600(W) mm
• Conveyor Speed: 0~10 M/min
• Packaging Height: 10~300 mm
• Air Compressor: 6 KG/cm²
• Machine Size: 1900(L) x 1000(W) x 1050(H) mm

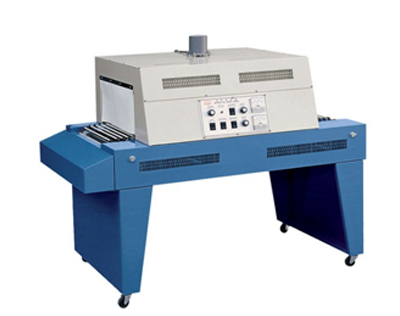

MINI SHRINK TUNNEL

Model No :CN-4520A

Specification

• Power Supply: 3φ, 220V/240V
• Watts: 9.6 KW
• Tunnel Size: 1000(L) x 450(W) x 200(H) mm
• Conveyor Speed: 0~10 m/min
• Conveyor Size: 1500(L) x 450(W) x 760(H) mm
• Machine Size: 1650(L) x 720(W) x 1220(H) mm
