Semi Auto Tapping Machine:

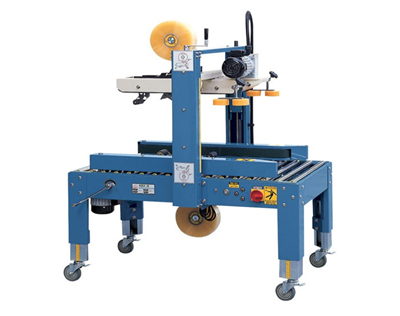

Model  : CHS-6602

Function Top & side drive
Power supply  110v/220v, 50/60hz
Tape width 2″ or 3″
2″ standard carton dimension L =150mm, w =110~500mm,    h =110~500mm
3″ standard carton dimension: L =150mm, w =135~500mm,    h =110~500mm
Working table height 570~770mm
Convey speed 20m / min
Machine size: 1250(l) x 960(w) x 1420(h) mm

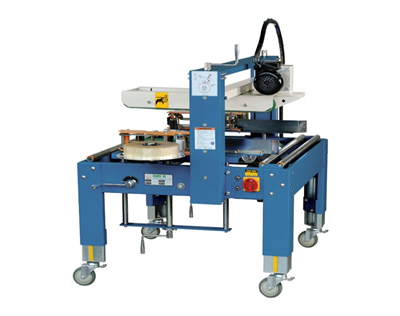

Model  : chs-6604

Function Top & bottom drive


Power supply 110v/220v, 50/60hz
Tape width 2″ or 3″
2″ standard carton dimension L =150mm, w =110~600mm,   h =110~250mm
3″ standard carton dimension: L =150mm, w =250~600mm,   h =135~250mm
Working table height 570~770mm
Convey speed 20m / min
Machine size: 1180(l) x 930(w) x 1150(h) mm
