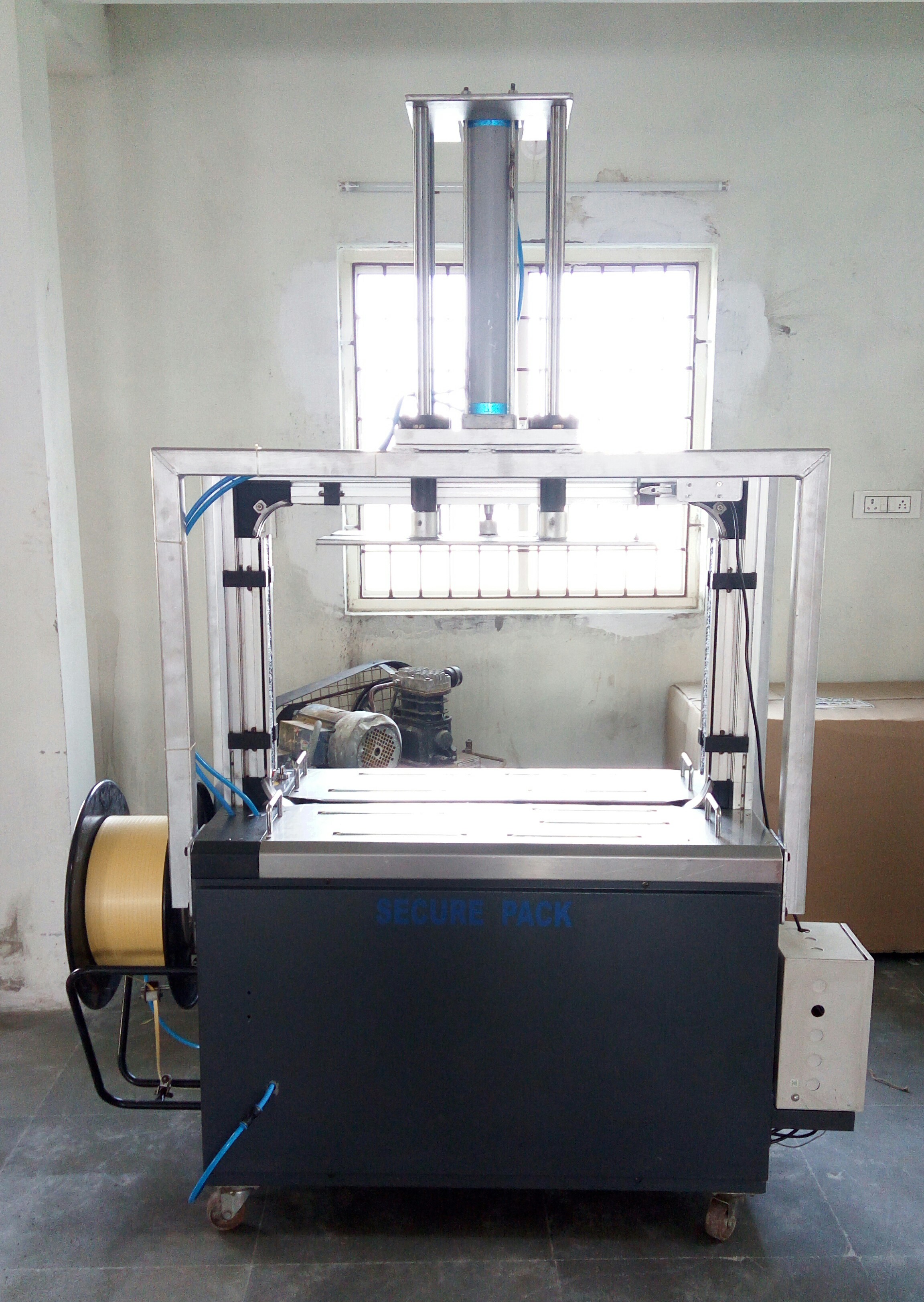

Automatic Strapping Machine with Pneumatic press
Model : FATP101
| Model | strapping with top press |
| Machine Type | bundle pressing and Strapping |
| Strapping Speed | 4 sec |
| Strap Width | 9-15 mm |
| Power Source | 400/50 Hz , 3 phase |
| Operation type | Pneumatic |
| Pressure | 8-10 bar |
| Weight | 300 kg |
| Control | relay logic |
| Motor | induction motors |
| Application Industry | cotton , paper , Lungie and corrugated box |

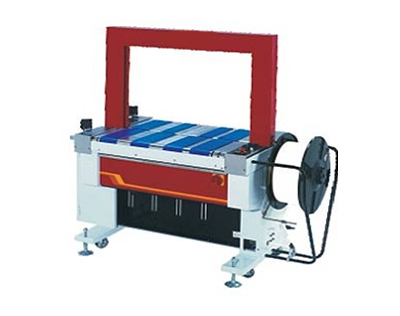

Automatic Strapping machine (ONLINE)
Model : SP101FF
| Model | Fully Automatic Strapping Machine SP 101FF |
| Max Strap Size | 800mm*600mm |
| Min Strap Size | 80mm*50mm |
| Strapping Speed | 2.15 sec |
| Strap Width | 9-15 mm |
| Strap Force | 25-700Newton |
| Power Source | 440/50,0.12HP |
| External Dimension | 1420mm*650*1565mm |
| Weight | 260 kg |
| Control | Plc , contactors |

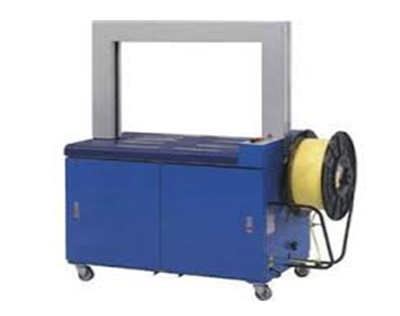

Automatic Strapping machine (Off line)
Model : SP100AA
| Model | Fully Automatic Strapping Machine SP 100AA |
| Max Strap Size | 800mm*600mm |
| Min Strap Size | 80mm*50mm |
| Strapping Speed | 2 sec |
| Strap Width | 9-15 mm |
| Strap Force | 25-700Newton |
| Power Source | 440/50,0.12HP |
| External Dimension | 1420mm*650*1565mm |
| Weight | 235 kg |

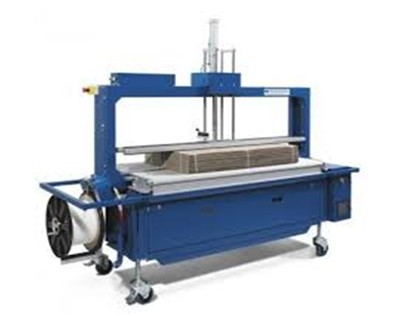

Fully Automatic Corrugated Cardboard Strapping Machine
Model :RO-TRC-5
| Model | Fully Automatic Strapping Machine RO-TRC-5 |
| Machine Type
|
Single Straps ,
Double Straps |
| Strap Size | 3-12mm |
| Strapping Speed | 1.1 sec |
| Strap Width | 9-15 mm |
| Power Source | 400/50 Hz , 3 phase |
| Operation type | Pneumatic |
| Pressure | 6 bar |
| Weight | 400 kg (1250mm)-500 kg (2200mm) |
| Control | PLC , VFD , servo controller |
| Motor | Servo and induction motors |
| Operator | Not required |
